QXlsx Examples

---

HelloWorld

• Hello world example

// main.cpp

#include <QtGlobal>
#include <QCoreApplication>
#include <QtCore>
#include <QVariant>
#include <QDebug>

#include <iostream>
using namespace std;

// [0] include QXlsx headers
#include "xlsxdocument.h"
#include "xlsxchartsheet.h"
#include "xlsxcellrange.h"
#include "xlsxchart.h"
#include "xlsxrichstring.h"
#include "xlsxworkbook.h"
using namespace QXlsx;

int main(int argc, char *argv[])
{
    QCoreApplication app(argc, argv);

    int row = 1; int col = 1;

    // [1]  Writing excel file(*.xlsx)
    QXlsx::Document xlsxW;
	QVariant writeValue = QString("Hello Qt!");
    xlsxW.write(row, col, writeValue); // write "Hello Qt!" to cell(A,1).
    xlsxW.saveAs("Test.xlsx"); // save the document as 'Test.xlsx'

    // [2] Reading excel file(*.xlsx)
    Document xlsxR("Test.xlsx");
    if (xlsxR.load()) // load excel file
    {
        Cell* cell = xlsxR.cellAt(row, col); // get cell pointer.
        if ( cell != NULL )
        {
            QVariant var = cell->readValue(); // read cell value (number(double), QDateTime, QString ...)
            qDebug() << var; // display value. it is 'Hello Qt!'.
        }
    }

    return 0;
}

---

TestExcel

• Basic examples (based on QtXlsx examples)
  • calendar
  • chart
  • chart sheet
  • data validation
  • demo
  • document property
  • extract data
  • formula
  • hyperlink
  • image
  • merge cells
  • number format
  • page margins
  • read style
  • richtext
  • row column
  • style
  • worksheet operations

---

HelloAndroid

• See ‘HelloAndroid’ example using QML and native C++.

• Qt 5.11.1 / gcc 4.9 / QtCreator 4.6.2
• Android x86 (using Emulator <Android Oreo / API 26>)
• Android Studio 3.1.3 (Android NDK 17.1)

---

WebServer

• Load xlsx file and display on Web.
  • Connect to http://127.0.0.1:3001
• C++ 14(17) is required. Old compilers is not supported.

---

ShowConsole

• Load xlsx file and display in console.
  • [Usage] ShowConsole *.xlsx
• C++ 11 is required. Old compilers is not supported.

---

ReadColor

• Read cell color

---

csv

• Save the xlsx file as a csv file.

        QString xlsxFileName = ":/test.xlsx";
        QXlsx::Document xlsxDoc(xlsxFileName);
        if (!xlsxDoc.isLoadPackage()) {
            return 0; // failed to load
        }

        QString csvFileName = "hello.csv";
        if ( xlsxDoc.saveAsCsv(csvFileName) ){
            qDebug() << "save as csv file";
        }


---

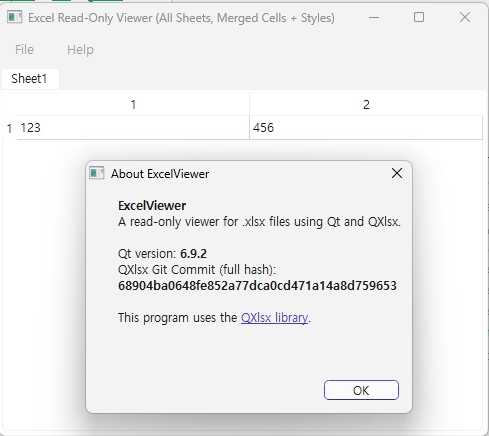

ExcelViewer

• Load xlsx file and display on Qt widgets.

---

XlsxFactory

• Load xlsx file and display on Qt widgets.
• Moved to personal repository for advanced app.
  • https://j2doll.tistory.com/654
  • The source code of this program cannot be released because it contains a commercial license.

---

LargeData

• LargeData example demonstrates how to efficiently generate, write, and read large Excel .xlsx files using QXlsx.
• It showcases:
  • Writing a large dataset (hundreds of thousands of rows)
  • Optional cell formatting
  • Splitting data across multiple sheets
  • Time-stamped progress reporting (0.1% increments)
  • Verification of selected sample cells after writing
  • Command-line configurability (rows, columns, sheet size, etc.)

• This example is useful for testing performance, benchmarking, and validating QXlsx behavior with big data workloads.

• Command-Line Usage
  • The program accepts several optional parameters:

Option	Description	Default
--rows <n> -r <n>	Number of rows to generate	100000
--cols <n> -c <n>	Number of columns to generate	10
--use-style -s	Apply simple cell formatting	Disabled
--sheet-rows <n> -S <n>	Max rows per sheet (0 = single sheet)	0

• Examples

LargeData --rows 200000 --cols 20
   Generate 200,000 rows × 20 columns

LargeData -r 100000 -c 10 --use-style
   Apply cell formatting

LargeData -r 200000 -c 10 -S 50000
   Split into multiple sheets (50,000 rows per sheet)

LargeData -r 300000 -c 15 -S 60000 --use-style
   All options combined

---

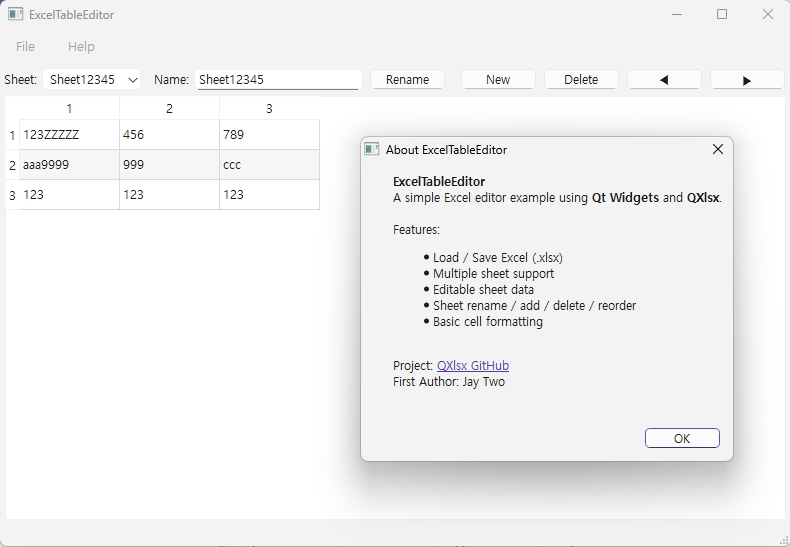

ExcelTableEditor

• Load Excel files with multiple sheets
• Display sheet contents in a QTableView
• Edit all cells (including row 1)
• Boolean values displayed as checkboxes
• Read & preserve basic cell formatting (font, alignment, colors)
• Sheet operations:
  • Rename sheet
  • Add new sheet
  • Delete sheet
  • Reorder sheets (move left/right)
• Save or Save As to produce a modified workbook
